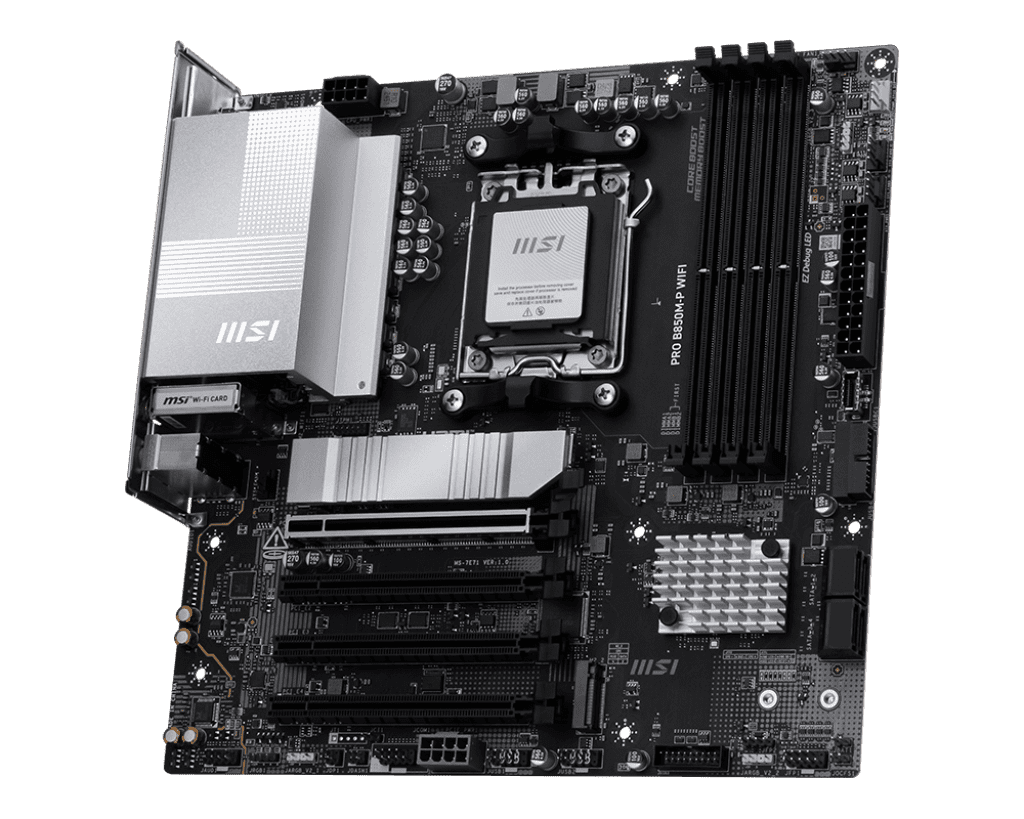

MSI B850M-P WIFI Gaming Desktop Motherboard - AMD B850 Chipset - Socket AM5 - Micro ATX (prob850mpwifi)

<b><u>Technical Information</u><br></b><br><b>AI-powered:</b> Yes<br><br><b><u>Processor &amp; Chipset</u><br></b><br><b>Chipset Manufacturer:</b> AMD<br><b>Chipset Model:</b> B850<br><b>Total Processor Supported:</b> 1<br><b>Processor Socket:</b> Socket AM5<br><b>Processor Supported:</b> Ryzen 7, Ryzen 9<br><br><b><u>Memory</u><br></b><br><b>Number of Memory Slots:</b> 4<br><b>Memory Form Factor:</b> DIMM, UDIMM<br><b>Maximum Memory Supported:</b> 256 GB<br><b>Memory Technology:</b> DDR5 SDRAM<br><b>Memory Speed Supported:</b> 8200 MHz, 6400 MHz, 6000 MHz, 5600 MHz, 4800 MHz<br><br><b><u>I/O Controller</u><br></b><br><b>Controller Type:</b> Serial ATA/600<br><b>RAID Supported:</b> Yes<br><b>RAID Levels:</b> 0, 1, 5, 10<br><br><b><u>Video</u><br></b><br><b>Onboard Video:</b> CPU Dependent Video<br><br><b><u>Audio</u><br></b><br><b>Audio Channels:</b> 7.1<br><br><b><u>Network &amp; Communication</u><br></b><br><b>Bluetooth:</b> Yes<br><b>Bluetooth Standard:</b> Bluetooth 5.4<br><b>Gigabit Ethernet:</b> Yes<br><b>Wireless LAN:</b> Yes<br><b>Wireless LAN Standard:</b> IEEE 802.11 a/b/g/n/ac/ax/be<br><br><b><u>I/O Expansions</u><br></b><br><b>PCI Express Standard:</b> PCI Express 3.0, PCI Express 5.0<br><b>Total Number of PCI Express Slots:</b> 4<br><b>Number of PCI Express x16 Slots:</b> 4<br><br><b><u>Interfaces/Ports</u><br></b><br><b>Total Number of USB Ports:</b> 8<br><b>Number of USB 2.0 Ports:</b> 4<br><b>HDMI:</b> Yes<br><b>HDMI Version:</b> 2.1<br><b>DisplayPort:</b> Yes<br><b>Number of Network (RJ-45) Ports:</b> 1<br><br><b><u>Onboard Interfaces</u><br></b><br><b>Number of SATA Interfaces:</b> 4<br><b>Number of M.2 Interfaces:</b> 3<br><b>Total Number of Onboard USB Ports:</b> 9<br><b>Number of Onboard USB 2.0 Ports:</b> 4<br><br><b><u>Physical Characteristics</u><br></b><br><b>Color Family:</b> Silver<br><b>Product Color:</b> Silver<br><b>Form Factor:</b> Micro ATX<br><b>Width:</b> 9.6"<br><b>Depth:</b> 9.6"<br><br><b><u>Miscellaneous</u><br></b><br><b>Brand Compatibility:</b> AMD

• ULTRA POWER - SUPPORTS THE LATEST RYZEN 9000 PROCESSORS IN HIGH PERFORMANCE - The PRO B850M-P WIFI employs a Direct 7 Phase (P-PAK) VRM for the AMD B850 chipset (AM5, Ryzen 9000 / 8000 / 7000) with Core Boost architecture
• FROZR GUARD - Excellent cooling features such as 7W/mK MOSFET thermal pads, extra choke thermal pads and an Extended Heatsink; Includes chipset heatsink, EZ M.2 Shield Frozr II, a Combo-fan (for pump & system) header (3A)
• DDR5 MEMORY, PCIe 5.0 x16 SLOTS - 4 x DDR5 DIMM SMT slots enable extreme memory overclocking speeds (1DPC 1R, 8200+ MT/s OC); 1 x PCIe 5.0 x16 SMT slot (128GB/s) with Steel Armor supports cutting-edge graphics cards
• TRIPLE M.2 CONNECTORS - Storage options include 1 x M.2 Gen5 x4 128Gbps slot with EZ M.2 Shield Frozr II to prevent thermal throttling, 1 x M.2 Gen4 x4 64Gbps slot and 1 x M.2 Gen4 x2 32Gbps slot

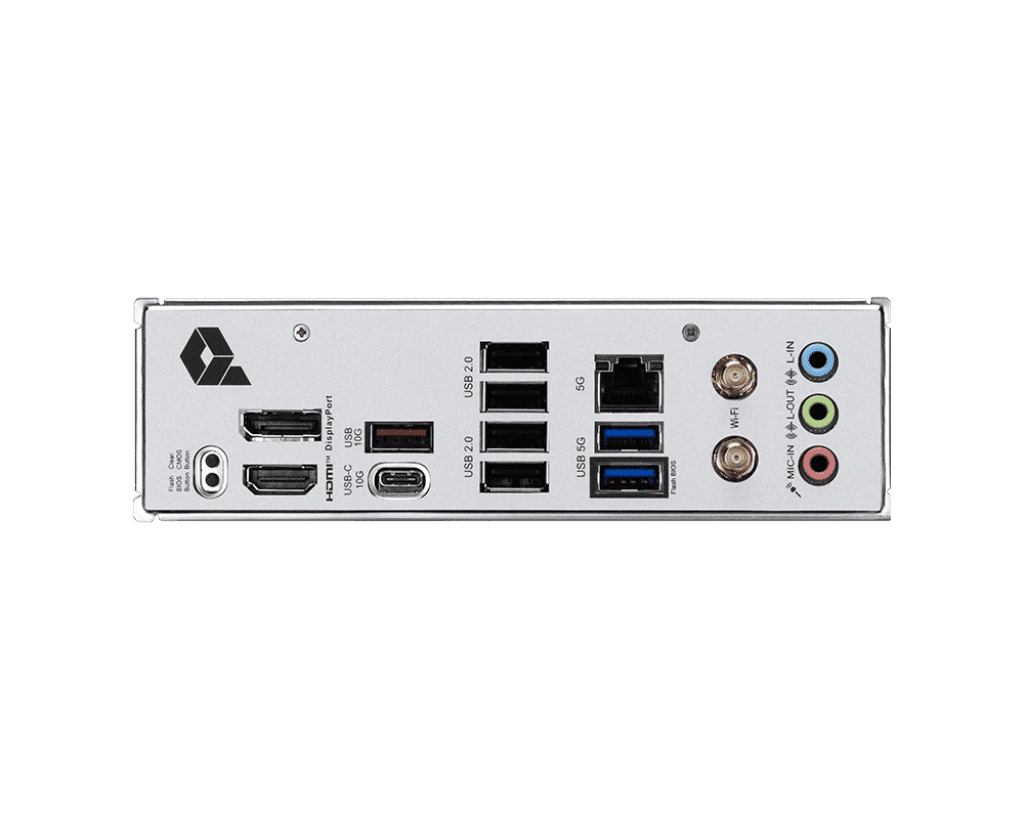

• HIGH-SPEED CONNECTIVITY - Network hardware includes a Wi-Fi 7 module with Bluetooth 5.4 & 5Gbps LAN; Rear ports include USB 10Gbps Type-C and 7.1 HD Audio with Audio Boost
